JY SERIES Lightweight Flexible Modules

The JY SERIES lightweight flexible modules are designed for applications where weight and flexibility are critical. With proprietary encapsulation materials with outstanding weather resistance and moisture protection.

Key Highlights

Ultra-lightweight and highly flexible, suitable for a wide range of applications with low load-bearing requirements
Proprietary encapsulation materials with outstanding weather resistance and moisture protection
Self-cleaning surface minimizes dust accumulation and ensures long-term high performance

Technologies

Polymer Chain Group Modification Technology

·Front sheet light transmittance ≥91%
·Water vapor transmission rate: <0.8g/㎡·day
·25-Year power warranty, ensuring long-term high performance

Enhanced Resin-Fiber Interface Technology

·Static load resistance up to 5400 Pa
·IEC 61215 hail test certified
·TÜV wind tunnel tested, resistant to category 17 typhoons

Nano-Hybrid Modification and Surface Fire-Resistance Treatment Technology

·Passed flame spread and burn block tests
·Does not collapse or spread sparks in mild fire scenarios

Nano Oxide Coating Self-Cleaning Technology

·Inhibits static electricity and dust accumulation, reducing hot spot effects
·Quick rinse cleaning boosts power generation by 3-5%

Specification Sheets

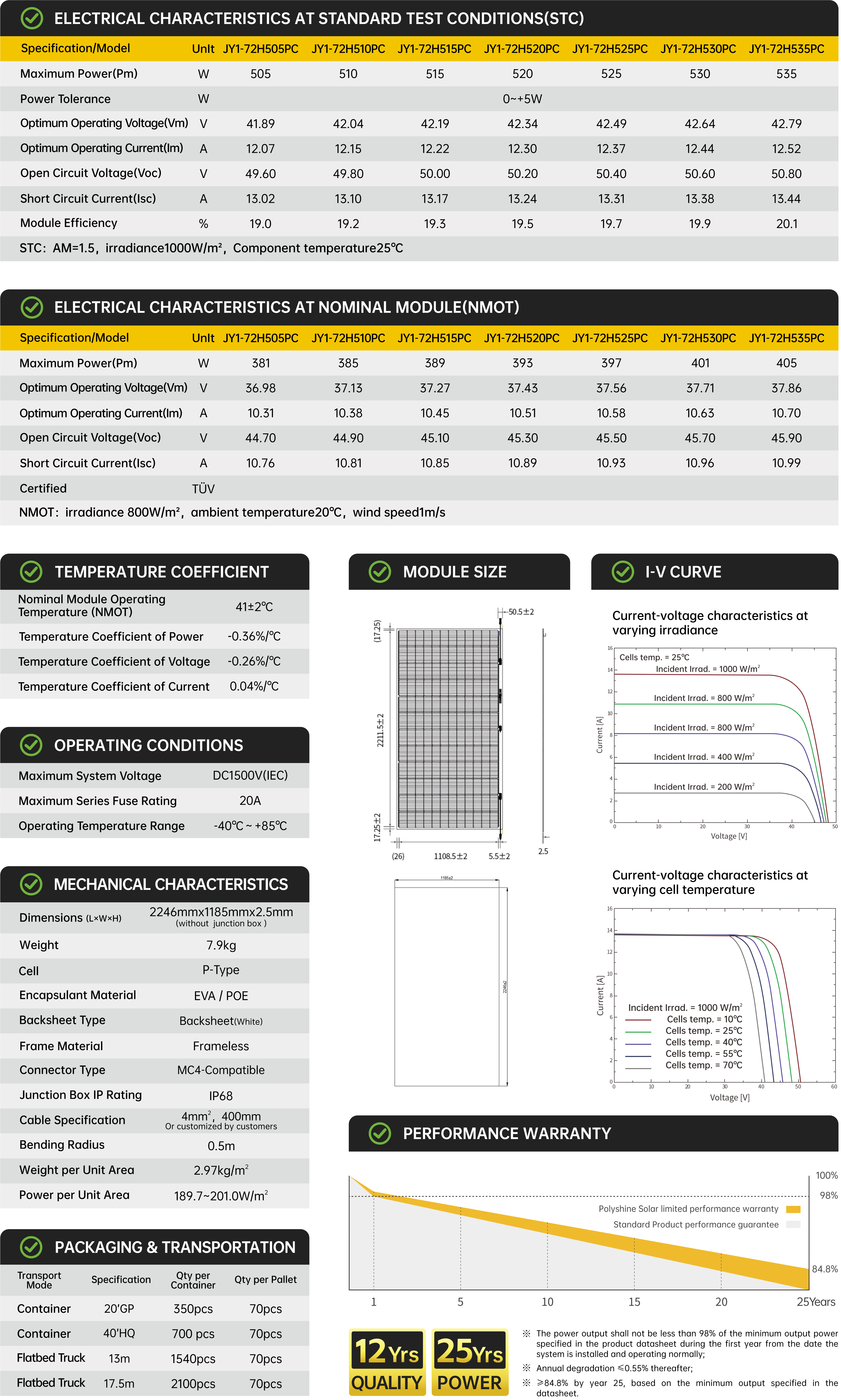

JY1-72HxxxPC 505~535W

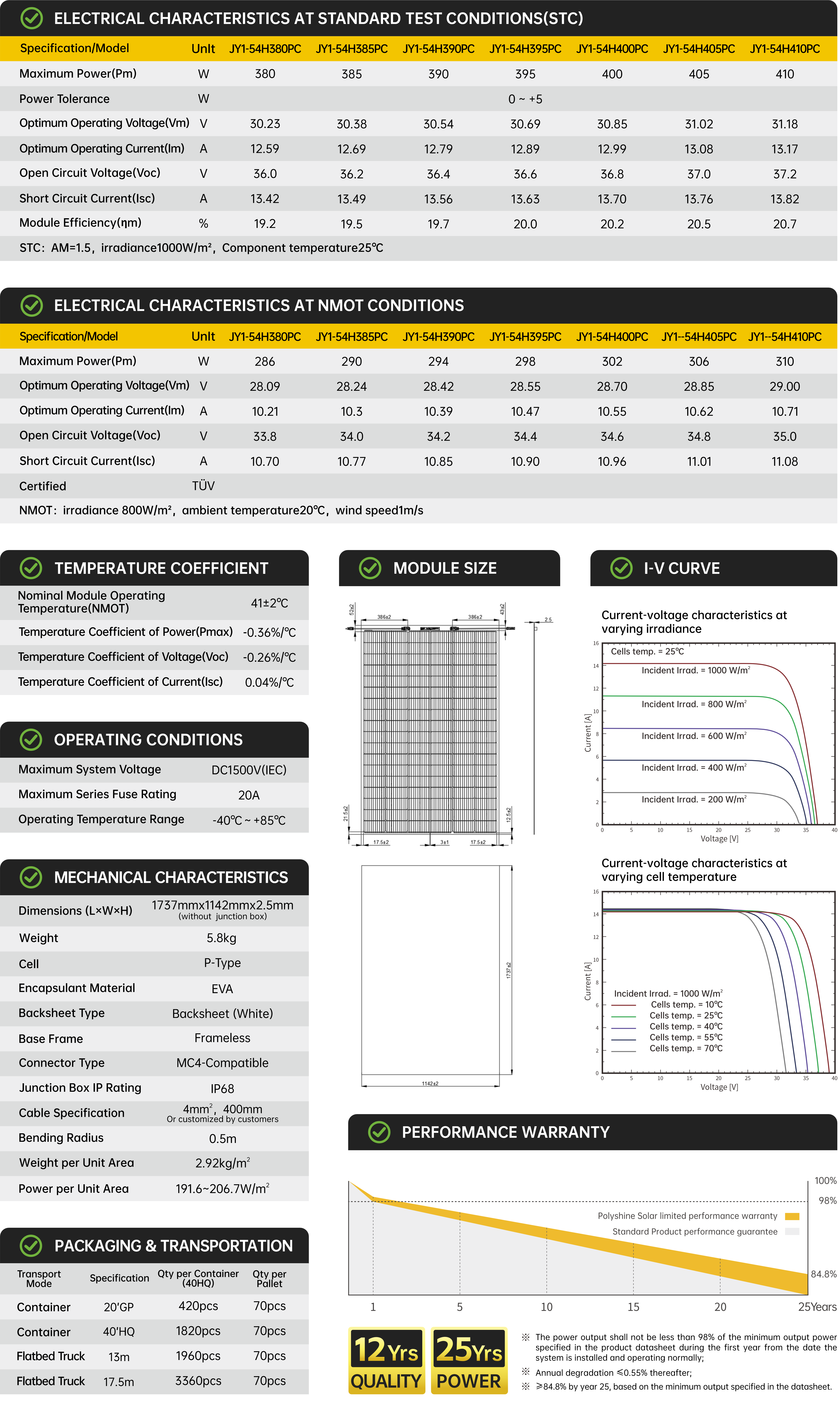

JY1-54HxxxPC 380~410W

Features

Ultra lightweight

High flexibility

Weather resistant

Self-cleaning surface
