YY SERIES Lightweight Photovoltaic Modules

The YY SERIES lightweight photovoltaic modules offer an integrated solution with mounting structure. They support removable installation for project flexibility and upgrades.

Key Highlights

Integrated PV Module with Mounting Structure
Supports Removable Installation, Enabling Project Flexibility and Upgrades
Reinforced Rigidity to Reduce Microcracks During Installation

Technologies

Polymer Chain Group Modification Technology

·Front sheet light transmittance ≥91%
·Water vapor transmission rate: <0.8g/㎡·day
·25-Year power warranty, ensuring long-term high performance

Enhanced Resin-Fiber Interface Technology

·Static load resistance up to 5400 Pa
·IEC 61215 hail test certified
·TÜV wind tunnel tested, resistant to category 17 typhoons

Nano-Hybrid Modification and Surface Fire-Resistance Treatment

·Passed flame spread and burn block tests
·Does not collapse or spread sparks in mild fire scenarios

Nano Oxide Coating Self-Cleaning Technology

·Inhibits static electricity and dust accumulation, reducing hot spot effects
·Quick rinse cleaning boosts power generation by 3-5%

Specification Sheets

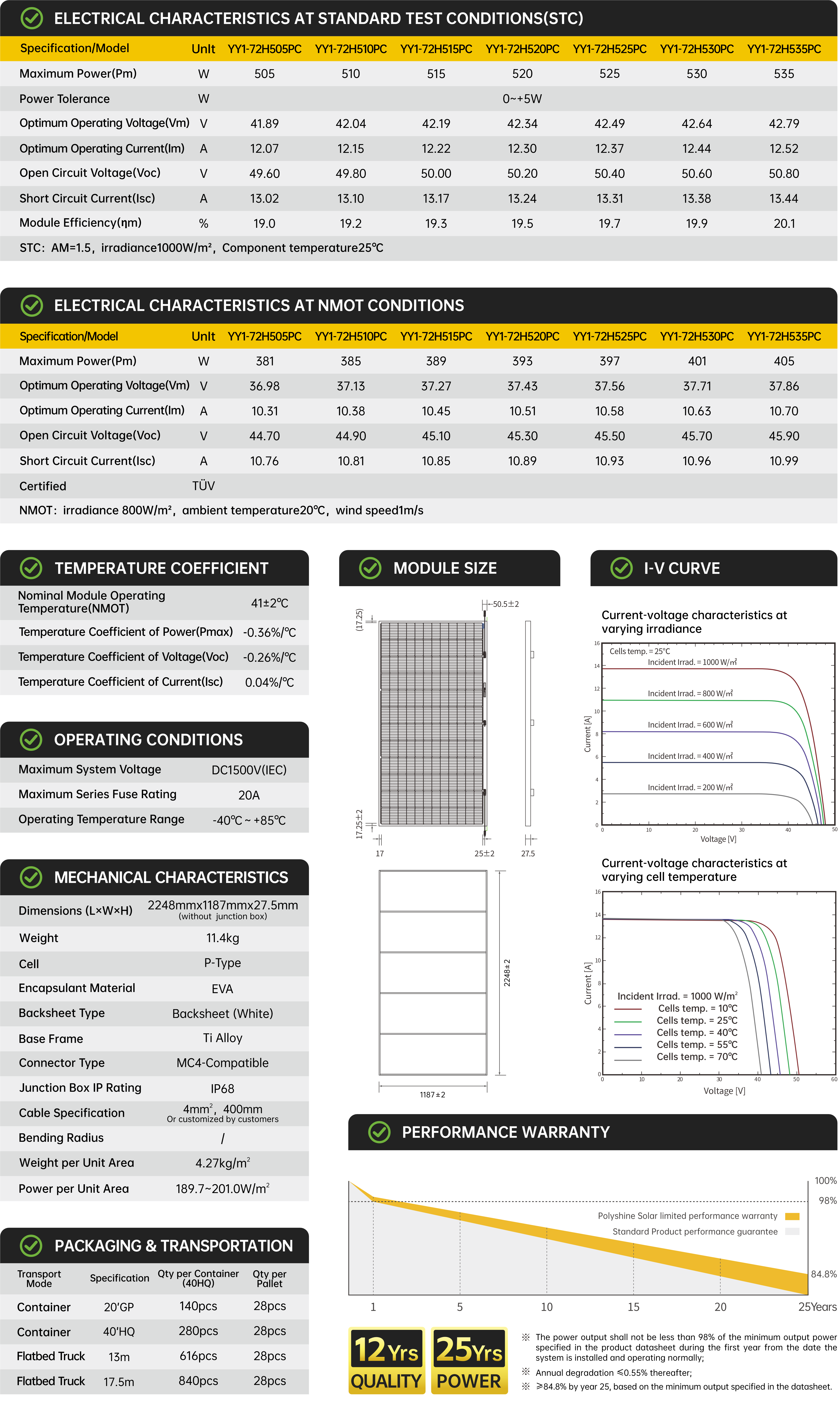

YY1-72HxxxPC 505~535W

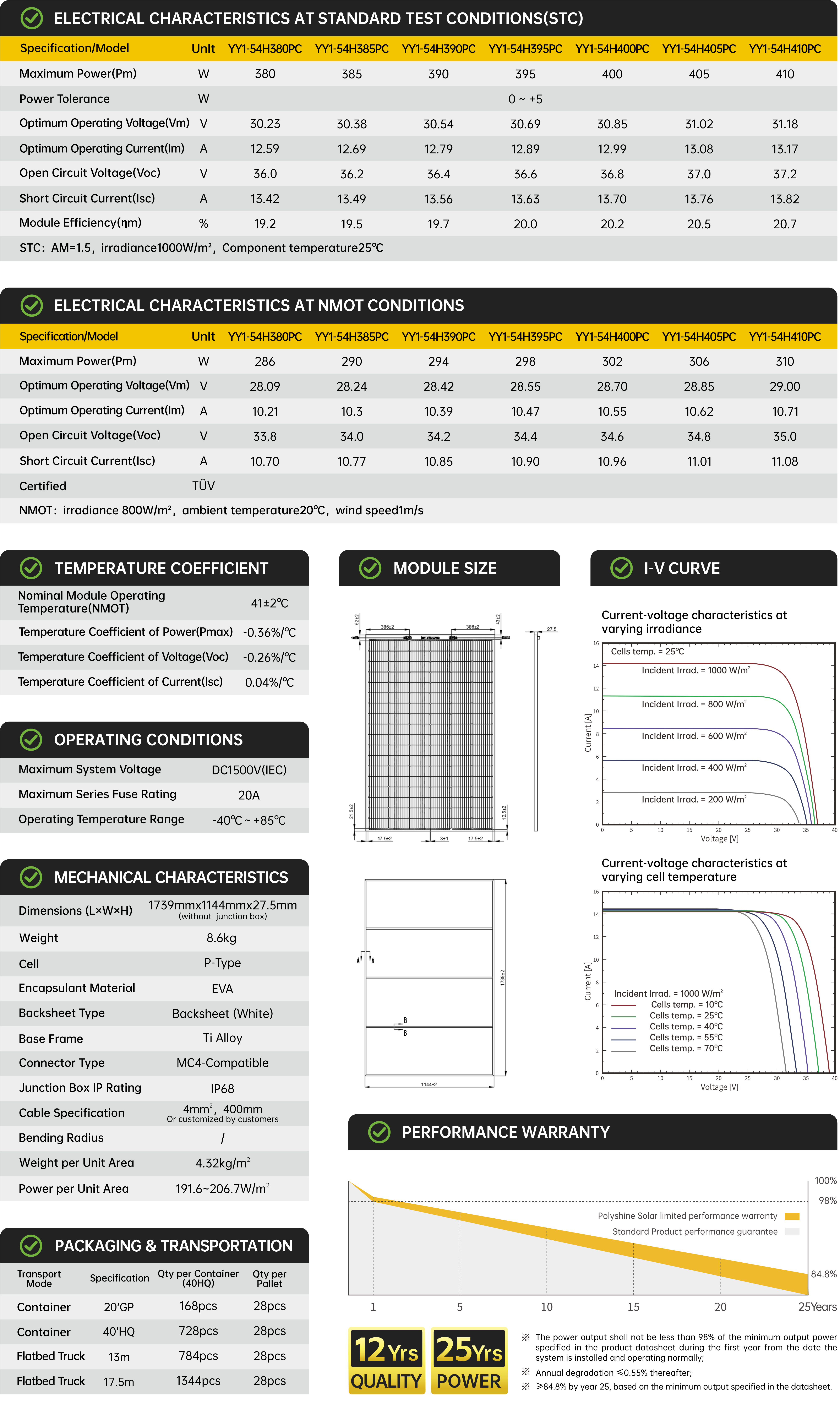

YY1-54HxxxPC 380~410W

Features

Integrated mounting structure

Removable installation

Reinforced rigidity

Quick installation
